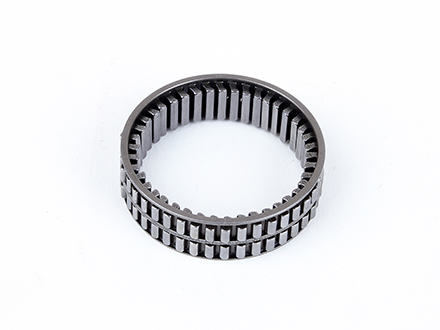

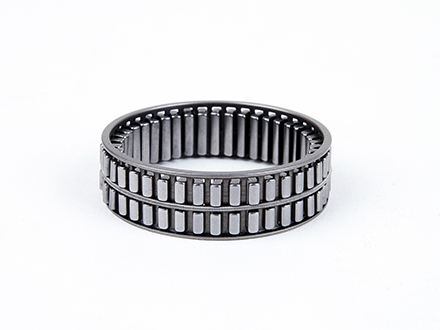

DE4048單向內芯

DE系列是一個使用于標準尺寸離合器上帶有支撐的保持架。較小的尺寸和高傳輸扭矩提供了一些有趣的技術和節約成本的解決方案。緊密貼合多個保持架來增加扭矩。當用來加工生產時必須嚴格遵守以下規定：

1）表面硬度達到60/62 HRC

2）經過淬煉后有1毫米最小回火深度

3）確保內外圈同心旋轉

4）可以使用潤滑劑

The DE Series.... is a cage with contact elements running on a metric sized freewheel race.The smaller dimensions and the high transmission torque offer some interesting technical and cost-saving solutions.Fitting multiple cages side-by-side increases torques.When the sliding race is machined in the seats or on the shafts,the following specifications must be adhered to:

1)60/62 HRC surface hardness

2)1mm minimum depth of tempering after grinding

3)ensure the concentric rotation of the races

4)lubrication suitable for the application.
